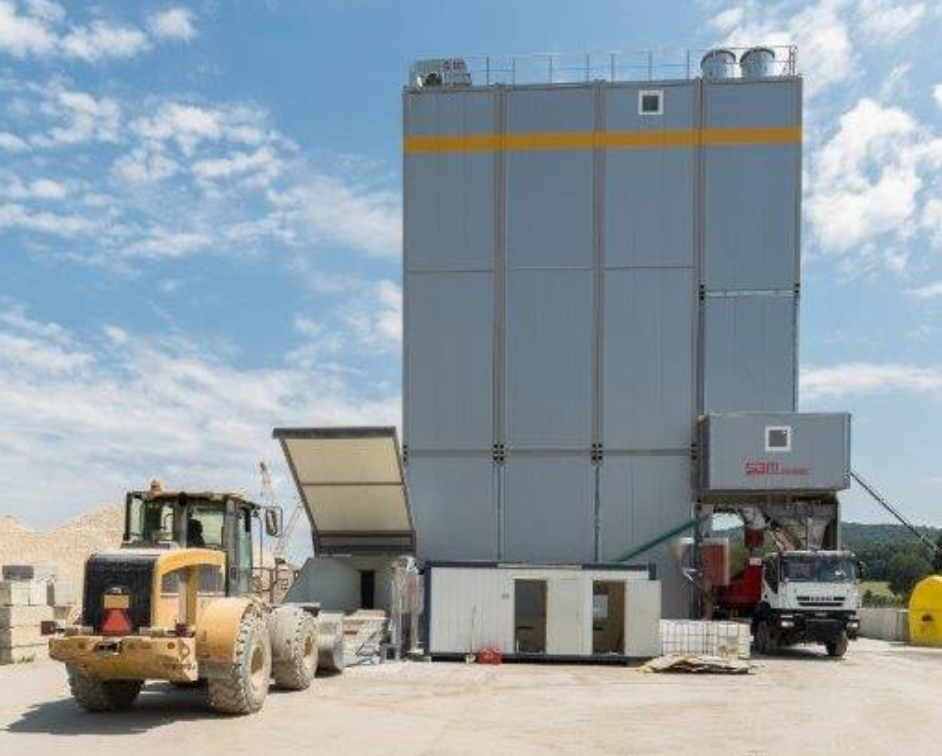

SBM VARIOMIX® 2000 CM 300 V
OPERATION SINCE:2017
LOCATION:Swiss
TECHNICAL DATA:
Tilt hopper mobile: 20 m³ | 32 t
Aggregate storage: 300 m³
Bins – aggregate storage: 6x 50 m³
Plant capacity – hardened concrete: 100 m³/h
Mixer size: 2,00 m³
SCOPE OF DELIVERY
Tilt hopper 20 m³ | 32 t mobile
incl. discharge belt conveyor
Feeding- and storage modules VM1 + VM2 + VM4
Bucket elevator type GBW500 with rubber buckets
Rotary distributor
Belt conveyor in VM2 and VM4, swivelling
Feeding- and storage module VM1 with 2 bins each 50 m³
Storage modules VM2 and VM4 with 2 bins each 50 m³
Compressed air supply
Electrical equipment
Aggregate weigher
Cladding with 40 mm ISO-panels
Mixing module VM3
Container for mixer platform and control room, ladder
Cladding with 40 mm ISO-panels
Skip hoist incl. frequency converter
2 pcs. integrated cement silos 35 m³ | 42 t with
double dividing wall and silo equipment
Cement weigher
Additive weigher, 2 chambers
Water weigher
Planetary mixer TEKA TPZ 3000 F
High pressure cleaning system for mixer
Compressed air and water piping
Electrical equipment
Concrete hopper 4,5 m³ | 12 t
Control unit Sauter
Additive container 20’
Additive equipment (5 sorts)
(incl. 5 pcs. tanks à 2.000 l and pumps)
